Organic Fertilizer Dryer

AdvantagesProfessional Customized, 15-20 Minutes Drying Time, Continuous Drying Process, Reduced Dust Emissions, Lighten odor of exhaust air, Compact Structure & Less Land Occupation.

【Production Period】: Within 45 Working Days

【Processing Capacity】:As need

【Exhaust Air Treatment】: Special Deodorization Device

【Fuel Choice】: Coal, Waste Wood, Biomass Pellet & Briquette, Diesel, Natural Gas, LPG, etc.

Application of Organic Fertilizer Dryer Machine :
Organic Fertilizer Dryer Machine is specially designed for drying organic fertilizer, and it is developed from rotary drum dryer, but some key design of the dryer machine is optimized according to the features of organic fertilizer.

Organic Fertilizer Dryer Machine also is known as organic ferlizer drying machine, rotary organic fertlizer dryer, etc in the market.

The types of raw material for producing organic fertilizer usually as follows:
(1) Fresh animal manure such as chicken manure, poultry dung, cow dung, sheep manure, etc. Such manure is with high humidity up to about 75%.
(2) Fermented animal manure: According to certain ratio, mix the animal manure, biomass material such as rice husk, sawdust, straw powder, etc. and fermentation bacterial, then the fermentation process takes about 40 day less or more. During the fermentation process, periodically needs to mix the manure as need. After the fermentation process, not only the moisture content of fermented manure is reduced to be about 40%, but also as the organic material become thoroughly decomposed, and it is more easy to be absorbed by the crop and plant.

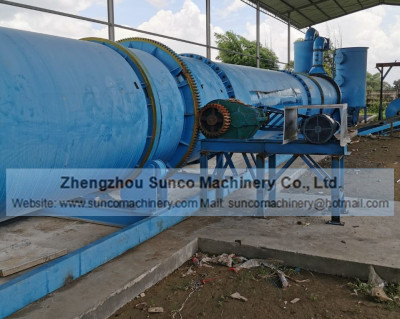

organic fertilizer dryer, Organic Fertilizer Drying Machine, rotary dryer for organic fertilizer

After being dried by Organic Fertilizer Dryer Machine:
(1) The dry manure can be directly used as organic fertilizer for the crop and plant.
(2) To make the dry manure into organic fertilizer pellet.

Working Principle of Organic fertilizer dryer machine:
(1) Burner and hot air furnace generate high temperature air for the organic fertilizer drying machine.
(2) Input belt conveyor feeds the wet manure into the organic fertilizer.
(3)  Inside the organic fertilizer dryer machine, the special designed inner structure of the dryer disperse the wet manure sufficiently, increase the heat contact area between the high temperature air and wet chicken manure as much as possible, thus make sure the organic fertilizer dryer can have good heat exchanging efficiency.
What is more, Organic fertilizer drying machine supply enough drying space. water evaporation space and drying time for the wet poultry manure.  The length and diameter of the organic fertilizer dryer decide the processing capacity. By adjusting the rotation speed of the dryer cylinder, then to control the wet manure drying time.  If the output moisture content of dry poultry manure is too high, then reduce the rotation speed of organic fertilizer dryer so that it can have longer drying time. If the output moisture content of dry chicken manure is too low, then increase the rotation speed of organic fertilizer dryer machine so that it can have shorter drying time.
(4) Draft fan makes high temperature air into Organic fertilizer dryer, and make the exhaust air and water vapor of the dryer in time.
(5) Most of the dry organic fertilizer comes out from the outlet of the dryer , and still there is litter fine powder is mixed with the exhaust air and water vapor, then goes into cyclone dust separator.
(6) In the cyclone dust separator, the fine powder is separated from the exhaust air and vapor. The fine powder come out through the bottom outlet of the cyclone dust separator, and the exhaust air and vapor goes out from the top and then pass through the draft fan, then goes into deodorization tower.
(7) Deodorization tower help to lighted the odor of exhaust air.
(8) Dry organic fertilizer is taked to product storage area for packing or making into organic fertilizer pellets.
(9) Electric control cabinet is used to control all the above machines

Organic Fertilizer Dryer
Chicken Litter Dryer
Sheep Manure Dryer
Cow Dung Dryer
Chicken Manure Dryer
Poultry Manure Dryer
Sunco Machinery can calculate and design the suitable organic fertilizer dryer machine as your actual need, please supply the below information:
01. Photos of wet organic fertilizer;
02. Initial moisture content (%) of wet organic fertilizer
03. Needed output moisture content (%) of dried organic fertilizer
04. Input Capacity (ton per hour) ?
04. Preferred fuel such as waste wood, wood chips, corncob, diesel, or natural gas, etc. ?
05. Other special requirements if have ?

For the detailed solution and price of related drying machine, please leave a message here, or contact mobile phone:+86-15838214261.
